A Pair Gigabit Ethernet Media Converter, 10/100/1000Mbps Networks Ethernet to Fiber Media Converter, with 2pcs 1000Base-LX SFP Module (1.25Gb/s, Single-Mode, Dual LC, 1310nm, 20km)
4.1 (71 items)
Limited Time Sale$21.52 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212355204 | Release Date | 2026/04/06 | List Price | $14.35 | Model Number | 212355204 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
2X1.25Gigabit Ethernet Network Media Converter (10/100/1000Base-T RJ45 to 1000Base-LX SFP) The Gigabit Ethernet media converter enhances communication distance and efficiently transmits data through fiber optic cables. It is designed to meet the increasing demand for higher power requirements in network equipment like network cameras, VOIP telephones, wireless LAN access points, and other devices. By leveraging the RJ45 interface, this media converter enables the direct delivery of data and power to network devices without additional power outlets or electrical cabling. The QSFPTEK media converters offer compatibility with a wide range of transceiver modules, including general 1000Base SFP transceivers, BIDI transceivers, CWDM transceivers, and more. It is essential to ensure consistency in the wavelength, speed rate, and distance of the transceiver modules used at both ends of the media converter. 2X 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 20km, LC, DOM) 1000BASE LX/LH SFP transceiver module compatible Cisco Meraki MA-SFP-1GB-LX20, it is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting dual data rates of 1.25Gbps and 1.0625Gbps at the link distance up to 20km over single-mode fiber (SMF). QSFPTEK 1000BASE LX transceiver is compatible with the IEEE 802.3z 1000BASE-LX standard.
- 2x Single-mode Dual LC fiber Optical Port: 1.25Gbps, 1310nm wavelength, support Gigabit Ethernet; 1x RJ45 Port: 10M/100M/1000M, supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover.
- Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX. Supports jumbo frame size 9K byte.
- Modulization configuration design, support hot-swappable, plug and play. And LED indicators for TX, FX LINK/ACT, POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.
- Only 93mm x 72mm x 27mm(3.7"x 2.8"x 1.1") in measurement. Its compact modular design facilitates deployment in a narrow desktop location to save space.

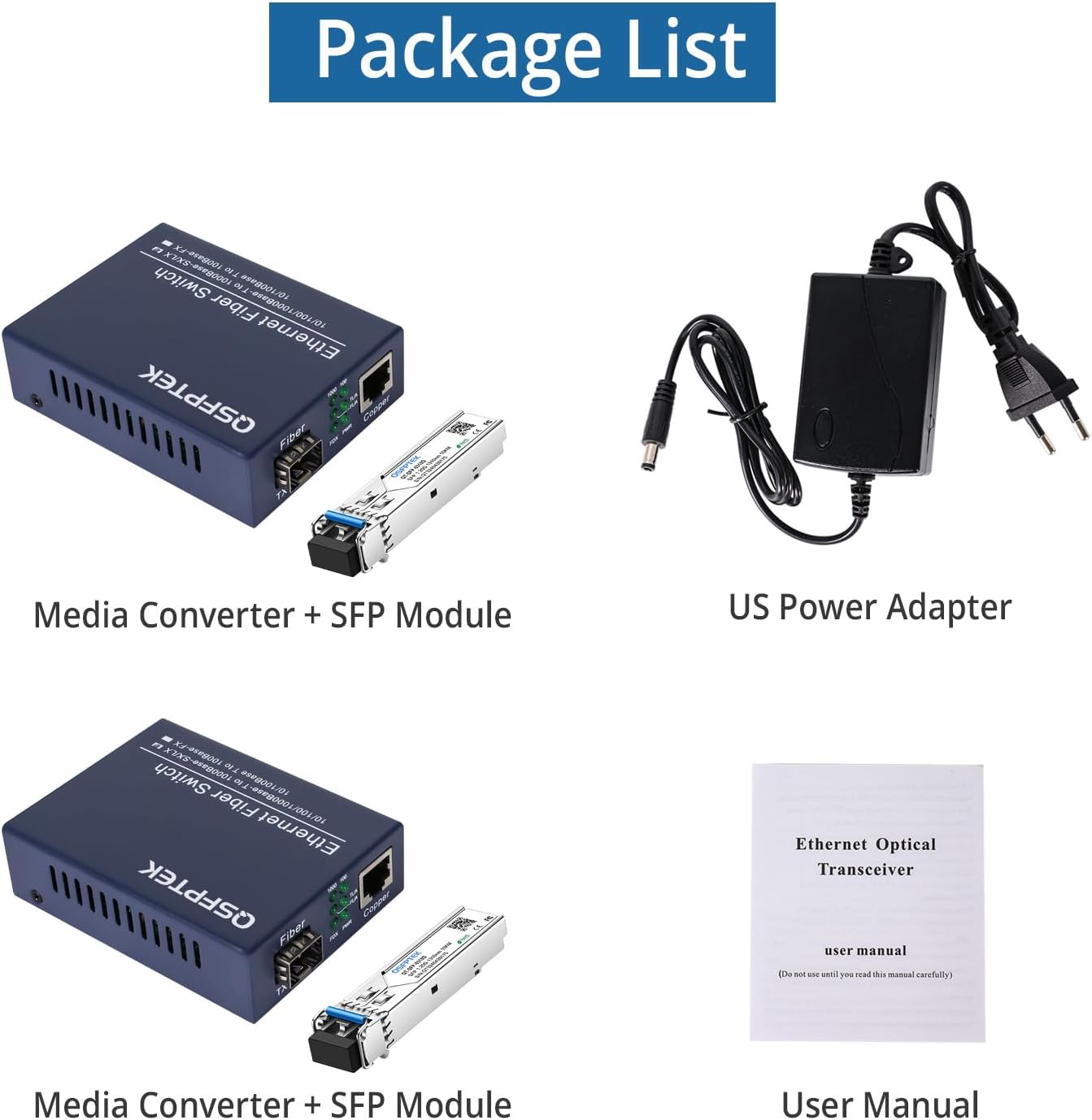

- Product List: 2x Gigabit Ethernet Media Converter, 2x 1000Base-LX SFP module, 2x DC Power Adapter, 1x Product Manual.
| UPC | 717331761202 |
|---|---|
| Interface | PoE, RJ45, SFP |
| Brand Name | QSFPTEK |
| Manufacturer | QSFPTEK |
| Number of Pins | 12 |
| Number of Channels | 2 |
