CNCTOPBAOS K12-100mm CNC Router Milling Machine Rotational Axis A 4th Axis Rotary Table 100mm 4 Jaw Chuck Dividing Head,MT2 65mm Tailstock Reducing Ratio 6:1 for CNC Engraving Machine
4.1 (27 items)
Limited Time Sale$166.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216492412 | Release Date | 2026/04/19 | List Price | $111.20 | Model Number | 216492412 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Specifications of 4th Axis: Center height: 65 mm/2.56 inch; Total height:; 115 mm/4.5 inch; Angle: 0.3°/step ; Reduction ratio: 6:1; Base Material: Aluminum alloy; Size: 210x168x115 mm/8.3x6.6x4.5 inch; Weight: 7.9 KG/17.4 LB; Inner through hole diameter/shaft hollow diameter is 22 mm/0.86 inch; Output shaft diameter:30 mm/1.18 inch

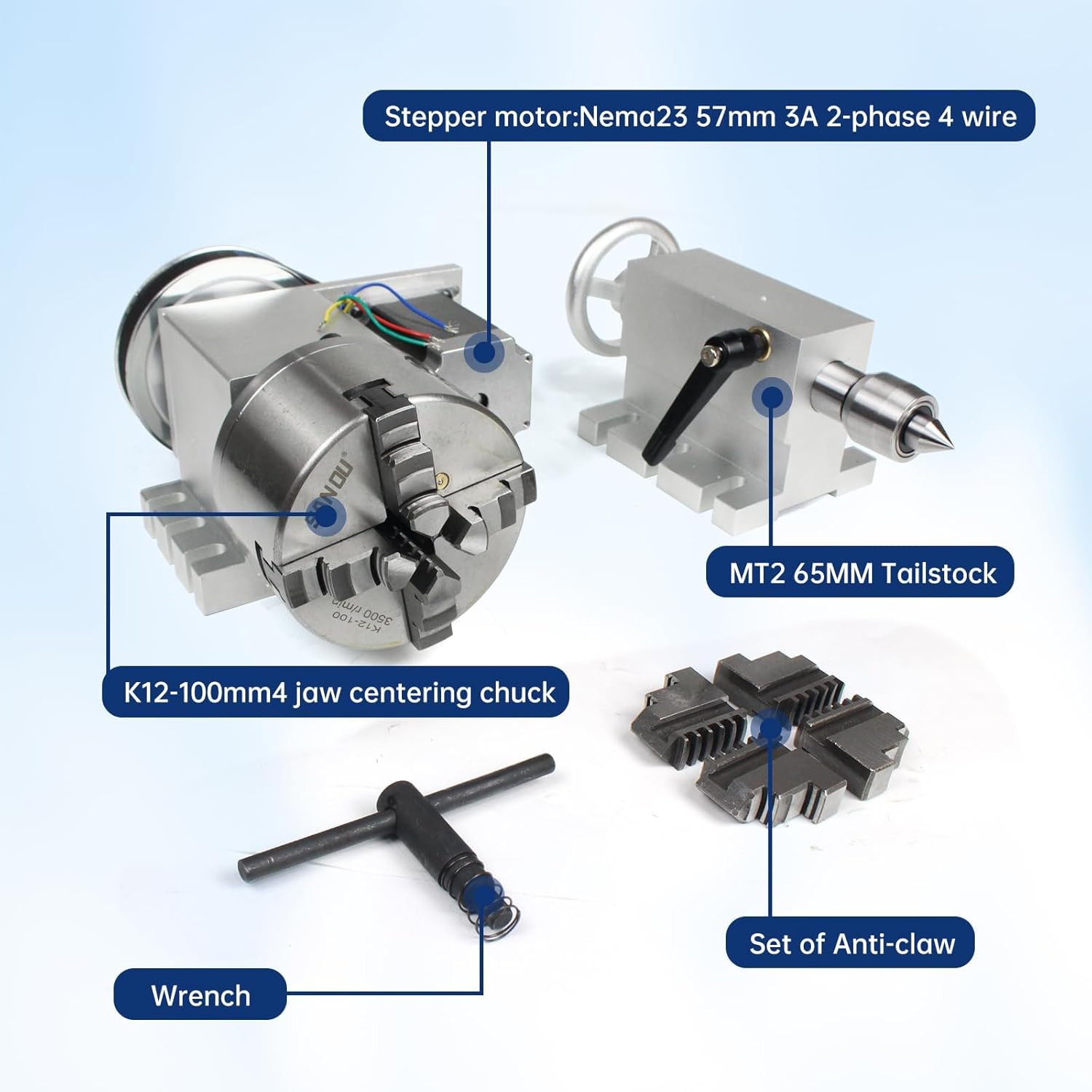

- Nema23 Stepper Motor: Phase: 2 Phase; Type: Hybrid; Step Angle: 1.8°; Current: 3.0A; Holding torque: 270oz-in/1.8Nm; Shat diameter: 8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue; Motor Size: 57x57x76 mm
- Specifications of MT2 Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65 mm/2.56 inch; Expansion stroke: 45 mm1.77 inch; Stretch distance: 50 mm/1.97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Exquisite workmanship,Durable,Stable performance,Sturdy and Wear-resistant; Weight: 2.5 KG/5.5 LB

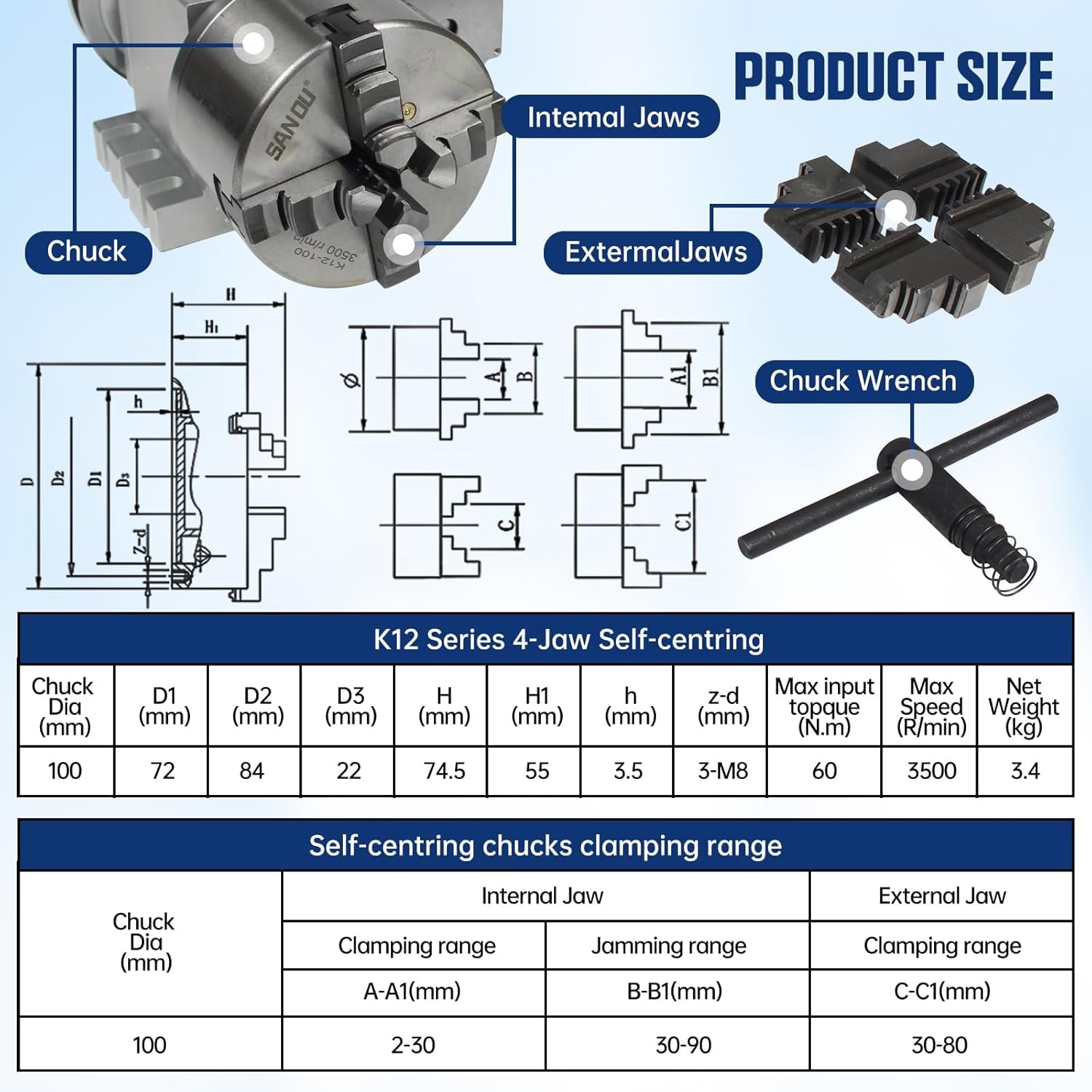

- Chuck Type: K12-100 4-Jaw self-centering chuck; Diameter:100mm; Max input torque: 60 N.m; Max Speed: 3500 R/min; External jaw clamping range: 30-80 mm/1.18-3.15 inches.; Internal jaw clamping range: 2-30 mm/0.08-1.18 inches; Internal jaw jamming range: 30-90 mm/1.18-3.54 inches; With four Anti-claw and Wrench

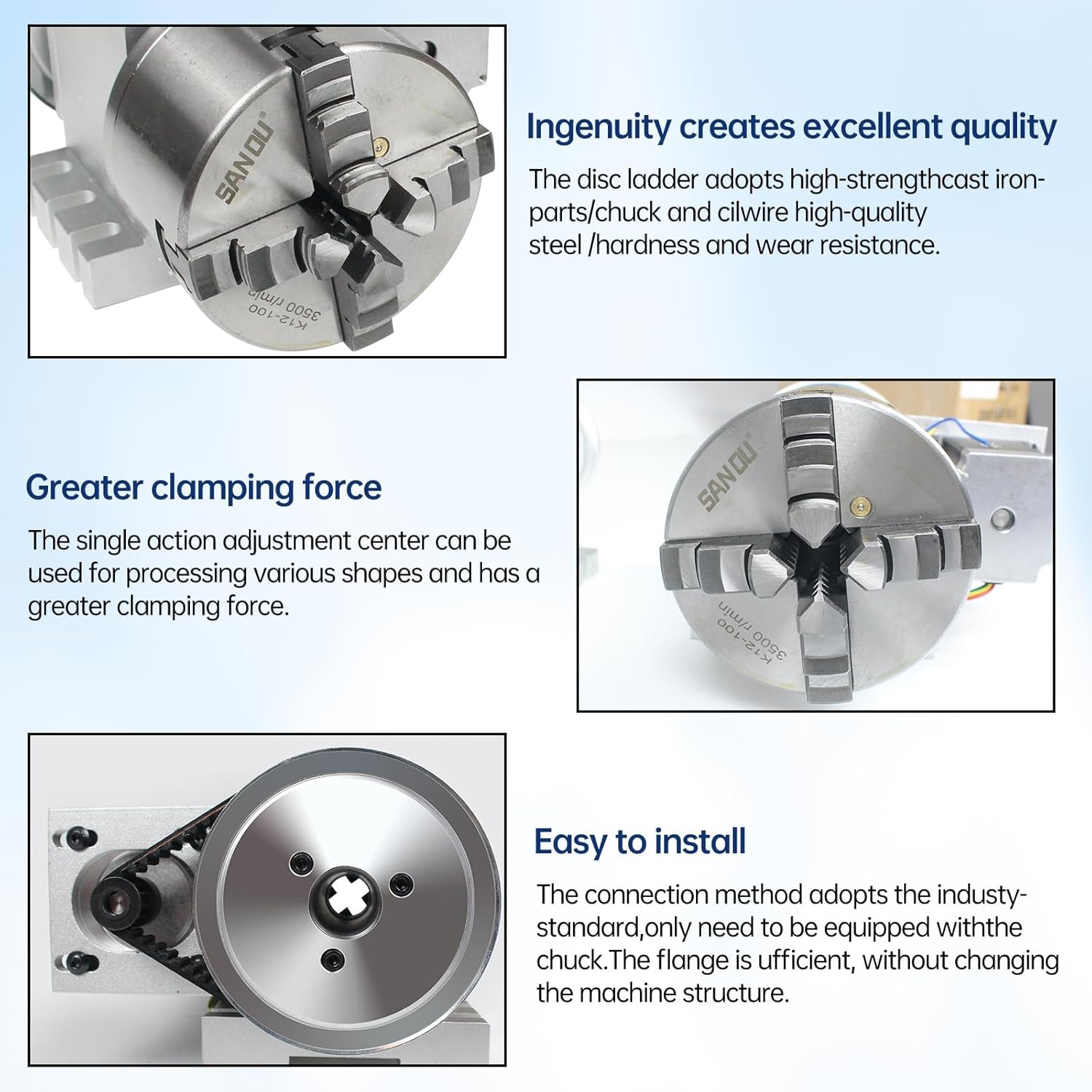

- Advantages: Rust proof coating process,stable 4 jaw chuck structure,fine workmanship,solid and practical jaw, excellent process to maximize service life;Application: The fourth axis can be used for three-dimensional processing of cylinders, bends and circles. The fourth axis engraving machine can be used for engraving spirals, scars etc
| UPC | 785004502711 |
|---|---|
| Capacity | 100 Millimeters |
| Lock Type | Self Centering |
| Brand Name | CNCTOPBAOS |
| Handle Type | hand-tightened |
| Item Weight | 10.23 Kilograms |
| Thread Size | K12 |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Model Number | S23 |
| Item Diameter | 100 Millimeters |
| Material Type | Aluminum |
| Compatible Devices | Milling Machine |
| Manufacturer Part Number | S23 |
