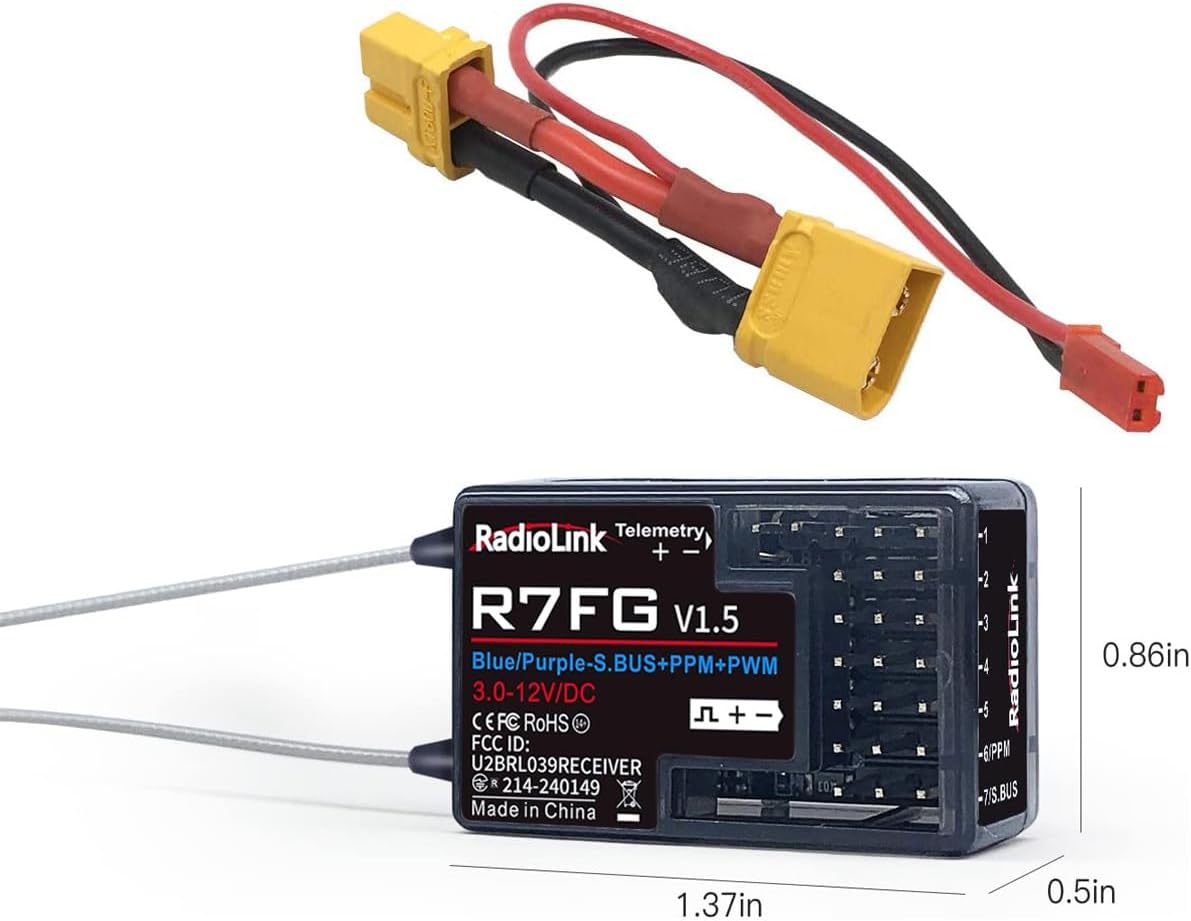

Radiolink R7FG 7-Channels Gyro Receiver 2.4GHz Two-Way Transmission Telemetry Long Range Receiver for RC Transmitter RC6GS V3/ RC4GS V3/ RC8X

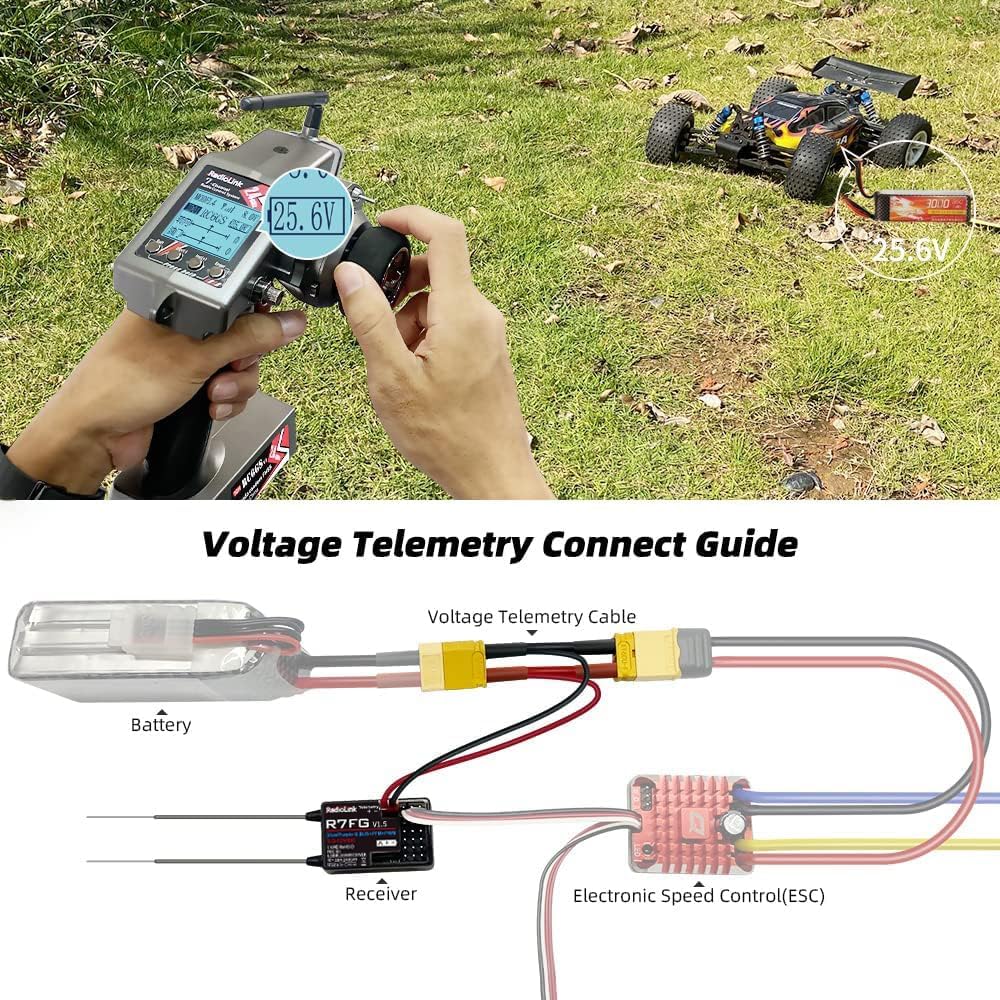

Integrated gyro for on/off road rc car vehicles and boats. Support PPM/PWM/SBUS signal output, vehicle's voltage and RSSI information telemetry, high voltage servo (3-12v DC), waterproof (IPX4) and more, it works well with Radiolink RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/T8FB/T8S radio controller.1) 7 Channel RC6GS Transmitter : B085L3X5GQ 2）5 Channel RC4GS Transmitter : B09WVDMC35 3）Telemetry Port only for vehicles' battery voltage transmission. 4）V1.2/V1.3 also support water splash proof (IPX4), 3-12v DCR7FG Full Features Real-time information TelemetryBuilt-in telemetry feature that automatically delivers vital data to your telemetry-capable controller, like vehicle's battery voltage, RSSI signal quality and more. 1) V1.2/V1.3 also support 3-12v DC and telemetry voltage up to 8S lipo. Quick to Bind with RadioNo need any setting on controller when R7FG bind with your radio, just press bind button for 1 second, R7FG LED will flashing and automatic search the nearest controller to complete bind. 1) Tips: the Bind Button is tiny, we suggest use a needle or sharp tool to press the Black Part on the Bind Button.4 Working Modes Short press the Bind Button 3 times within 1 second to change Gyro mode or Normal mode. GREEN LED indicates the Normal mode, RED LED indicates the Gyro mode.1) PWM/PWM+PPM+SBUS(without Gyro) 2) PWM/PWM+PPM+SBUS(with Gyro )R7FG Water Splash-proof ReceiverNo worry about of your car running on puddles, no need water proof case, IPX4 water splash proof to let your car running on all terrain.1) Note: Keep the receiver plugs dry after driving` on water puddlePackage: R7FG receiver *1; Telemetry cable *1

• 1) 7 Channels: 2.4Ghz dual antennas with stronger signal, 1-6 channel output PWM signal, the 7th channel outputs SBUS/PPM signal.
• 2) Real-time Telemetry: R7FG built-in telemetry feature, can give you important information like vehicle's battery voltage, RSSI signal quality and more, avoiding the battery over-discharge and damage.
• 3) Integrated Gyro: timely and precisely corrects the sensitivity and improve the stability. Its good flexibility to nearly all of types rc models, like drifting on-road rc car.
• 4) Excellent Anti-interference: FHSS algorithm reduce overall signal interference. Outstanding range over 1968 feet (600 meters) on the ground, good choice for FPV RC car.
• 5) Superb Fast Response: High resolution ratio of 4096, the stability of 0.5us, only 12ms frame rate, to provide a quicker, low-latency connection for the driver.
