VSDISPLAY 10.4" 10.4 Inch 800X600 LCD Screen A104SN03 V1 with Touch Panel VS104TP-A2 & VGA AV LCD Controller Board KYV-N2 V1
4.0 (60 items)
Limited Time Sale$75.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218486003 | Release Date | 2026/05/03 | List Price | $50.40 | Model Number | 218486003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Controller Board:VGA AV LCD Board Work for 60Pin TTL LCD ScreenInput Power Adapter:12Vdc More than 1A.Come In Standby Model When Not Input SignalStandby Model <0.3WVideo Input: VGA AVOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:110mm x 85mm x 10mm10.4" A104SN03 V1 800X600 LCD Screen:Display Mode TN, Normally White, Transmissive Resolution 800（RGB)×600Outline Size 228.4 × 175.4×6.5 (H×V×D)Display Area 211.2 × 158.4 (H×V)Brightness 350 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 75/75/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins Backlight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA+AV LCD Controller Board KYV-N2 V11× 10.4inch A104SN03 V1 800X600 LCD Screen With Touch Panel VS104TP-A21× Power Supply Cable1× VGA Cable1× AV Cable1× USB Controller Card1× USB Cable1× Extend Touch Cable1× Keyboard With Cable
- 10.4" A104SN03 V1 800X600 LCD Screen: Resolution 800（RGB)×600 Outline Size 228.4 × 175.4×6.5 (H×V×D) Display Area 211.2 × 158.4 (H×V) Brightness 350 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 75/75/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

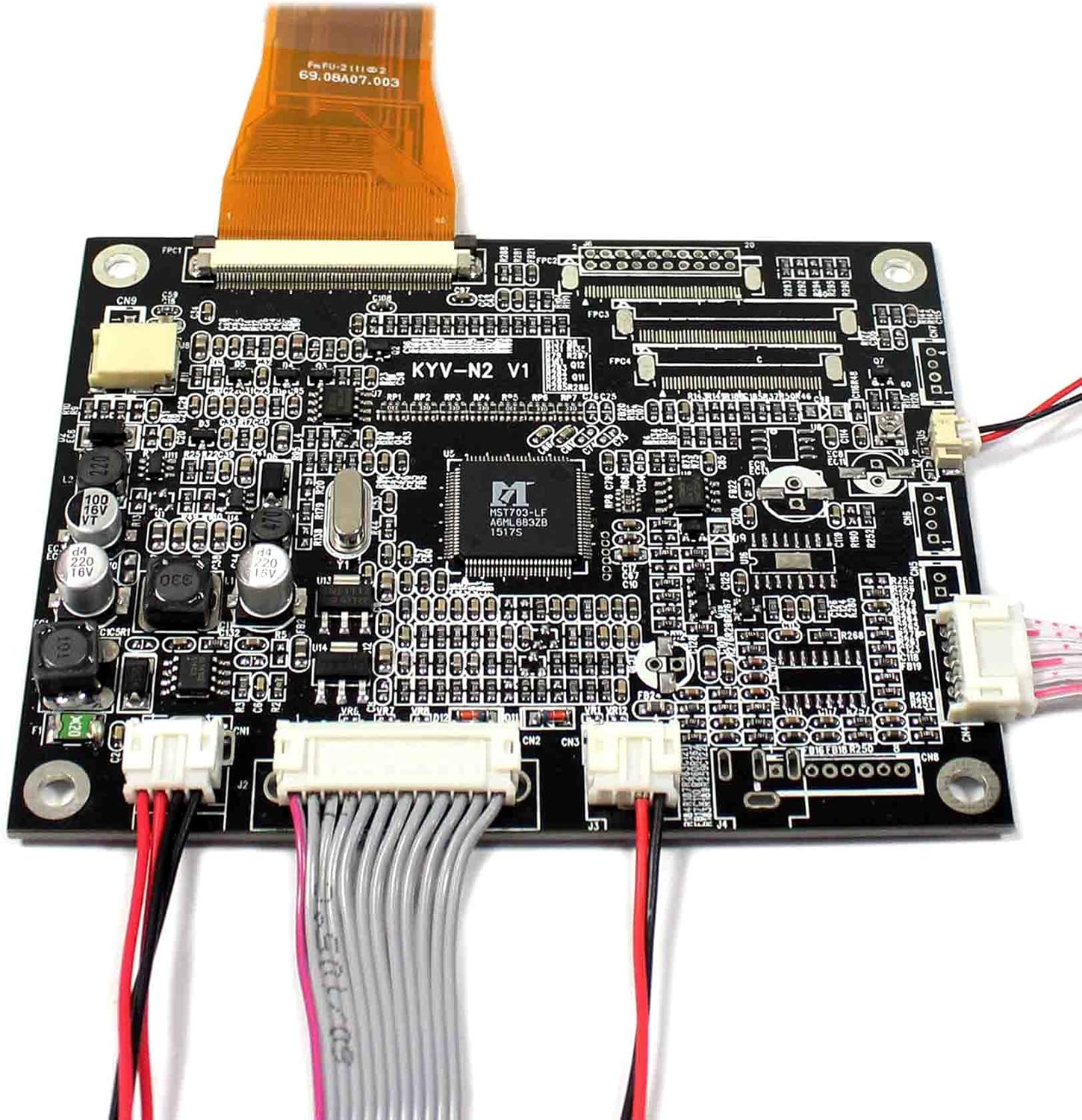

- VGA AV LCD Board Work for 60Pin TTL LCD Screen (Video Input: VGA AV)
- Input Power Adapter:12Vdc More than 1A.
- Come In Standby Model When Not Input Signal Standby Model <0.3W
- Packing list : 1× VGA+AV LCD Controller Board KYV-N2 V1 1× 10.4inch A104SN03 V1 800X600 LCD Screen With Touch Panel VS104TP-A2 1× Power Supply Cable 1× VGA Cable 1× AV Cable 1× USB Controller Card 1× USB Cable 1× Extend Touch Cable 1× Keyboard With Cable
| UPC | 601285624068 |
|---|---|
| Brand | VSDISPLAY |
| Resolution | SVGA |
| Screen Size | 10.4 Inches |
| Manufacturer | VSDISPLAY |
| Screen Finish | Glossy |
| Viewing Angle | 180 Degrees |
| Native Resolution | 800 x 600 |
| Display Technology | LCD |
| Additional Features | Touchscreen |
| Hardware Connectivity | Unknown |
